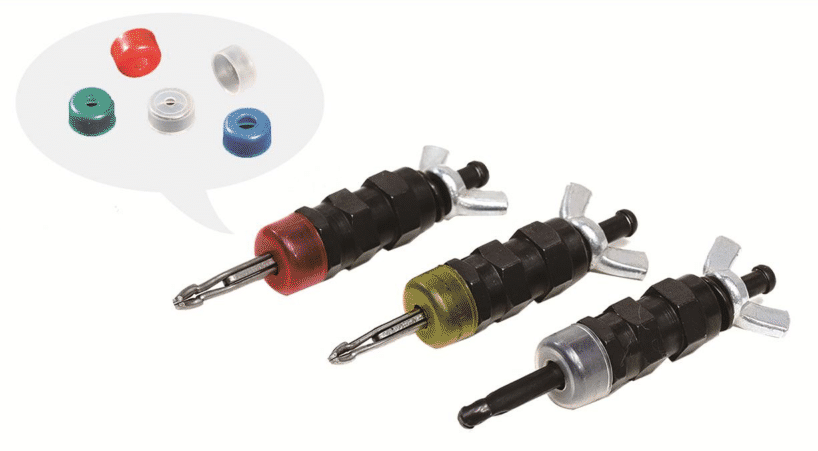

BDNM Series Selection Table Metric Sizes
| PART NO | WHOLE SIZE (INCHES) | GRIP RANGE (INCHES) | COLOR CODE (CAP) | COLOR CODE (BODY) | MM |
|---|---|---|---|---|---|
| BDNMA-2.5 | 2.5 | 0~13 | 2.5 | ||
| BDNMB-2.5 | 0~26 | ||||
| BDNMA-3.0 | 3 | 0~13 | 3 | ||
| BDNMB-3.0 | 0~26 | ||||
| BDNMA-3.5 | 3.5 | 0~13 | 3.5 | ||
| BDNMB-3.5 | 0~26 | ||||
| BDNMA-4.0 | 4 | 0~13 | 4 | ||
| BDNMB-4.0 | 0~26 | ||||
| BDNMA-4.5 | 4.5 | 0~13 | 4.5 | ||
| BDNMB-4.5 | 0~26 | ||||
| BDNMA-5.0 | 5 | 0~13 | 5 | ||
| BDNMB-5.0 | 0~26 | ||||
| BDNMA-5.5 | 5.5 | 0~13 | 5.5 | ||
| BDNMB-5.5 | 0~26 | ||||
| BDNMA-6.0 | 6 | 0~13 | 6 | ||
| BDNMB-6.0 | 0~26 | ||||
| BDNMA-6.5 | 6.5 | 0~13 | 6.5 | ||
| BDNMB-6.5 | 0~26 | ||||
| BDNMA-7.0 | 7 | 0~13 | 7 | ||
| BDNMB-7.0 | 0~26 | ||||
| BDNMA-7.5 | 7.5 | 0~13 | 7.5 | ||
| BDNMB-7.5 | 0~26 | ||||
| BDNMA-8.0 | 8 | 0~13 | 8 | ||
| BDNMB-8.0 | 0~26 |
| PART NO | HOLE SIZE (INCHES) | GRIP RANGE (INCHES) | COLOR CODE (CAP) | COLOR CODE (BODY) | DRILL SIZE (MM) |
|---|---|---|---|---|---|
| BDNMA-2.5 | 2.5 | 0~13 | RED | BLACK | 2.5 |
| BDNMB-2.5 | 0~26 | ||||
| BDNMC-2.5 | 13~38 | ||||
| BDNMD-2.5 | 38~63 | ||||
| BDNMA-3.0 | 3.0 | 0~13 | BLUE | BLACK | 3.0 |
| BDNMB-3.0 | 0~26 | ||||
| BDNMC-3.0 | 13~38 | ||||
| BDNMD-3.0 | 38~63 | ||||
| BDNMA-3.5 | 3.5 | 0~13 | GREEN | BLACK | 3.5 |
| BDNMB-3.5 | 0~26 | ||||
| BDNMC-3.5 | 13~38 | ||||
| BDNMD-3.5 | 38~63 | ||||
| BDNMA-4.0 | 4 | 0~13 | BLACK | BLACK | 4 |
| BDNMB-4.0 | 0~26 | ||||
| BDNMC-4.0 | 13~38 | ||||
| BDNMD-4.0 | 38~63 | ||||
| BDNMA-4.5 | 4.5 | 0~13 | YELLOW | BLACK | 4.5 |
| BDNMB-4.5 | 0~26 | ||||
| BDNMC-4.5 | 13~38 | ||||
| BDNMD-4.5 | 38~63 | ||||
| BDNMA-5.0 | 5.0 | 0~13 | RED | BLACK | 5.0 |
| BDNMB-5.0 | 0~26 | ||||
| BDNMC-5..0 | 13~38 | ||||
| BDNMD-5.0 | 38~63 |
| PART NO | HOLE SIZE (INCHES) | GRIP RANGE (INCHES) | COLOR CODE (CAP) | COLOR CODE (BODY) | DRILL SIZE (MM) |
|---|---|---|---|---|---|
| BDNMA-5-5 | 5.5 | 0~13 | WHITE | BLACK | 5.5 |
| BDNMB-5.5 | 0~26 | ||||
| BDNMC-5.5 | 13~38 | ||||
| BDNMD-5.5 | 38~63 | ||||
| BDNMA-6.0 | 6.0 | 0~13 | BLUE | BLACK | 6.0 |
| BDNMB-6.0 | 0~26 | ||||
| BDNMC-6.0 | 13~38 | ||||
| BDNMD-6.0 | 38~63 | ||||
| BDNMA-6.5 | 6.5 | 0~13 | YELLOW | BLACK | 6.5 |
| BDNMB-6.5 | 0~26 | ||||
| BDNMC-6.5 | 13~38 | ||||
| BDNMD-6.5 | 38~63 | ||||
| BDNMA-7.0 | 7.0 | 0~13 | GREEN | BLACK | 7.0 |
| BDNMB-7.0 | 0~26 | ||||
| BDNMC-7.0 | 13~38 | ||||
| BDNMD-7.0 | 38~63 | ||||
| BDNMA-7.5 | 7.5 | 0~13 | YELLOW | BLACK | 7.5 |
| BDNMB-7.5 | 0~26 | ||||
| BDNMC-7.5 | 13~38 | ||||
| BDNMD-7.5 | 38~63 | ||||
| BDNMA-8.0 | 8.0 | 0~13 | BLACK | BLACK | 8.0 |
| BDNMB-8.0 | 0~26 | ||||
| BDNMC-8..0 | 13~38 | ||||
| BDNMD-8.0 | 38~63 |
